Neon Tube Electrodes — Lead Glass
Neon Tube Electrode
Features:
-Sophisticated emission coating technology, ensuring all shells "warm up" evenly during bombarding.
- Fully annealed to relieve stress, prevent cracking.
- Advanced Nickel plating shell for lowest sputtering and blackening.
- - Lead free glass sleeve, Lead glass sleeve, and American glass sleeve options available.
Features:
-Sophisticated emission coating technology, ensuring all shells "warm up" evenly during bombarding.
- Fully annealed to relieve stress, prevent cracking.
- Advanced Nickel plating shell for lowest sputtering and blackening.
- - Lead free glass sleeve, Lead glass sleeve, and American glass sleeve options available.

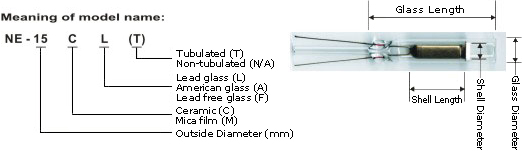

| MODEL | MA.RATING (MA) | SHELL | GLASS | ||
|---|---|---|---|---|---|
| DIA(MM.) | LENGTH(MM.) | DIA(MM.) | LENGTH(MM.) | ||
| NE-8ML NE-8MLT | 20 | 5 | 10 | 8 | 34 |
| NE-10ML NE-10MLT | 20-30 | 6 | 18 | 10 | 45 |
| NE-12ML NE-12MLT | 30-45 | 8 | 27 | 13 | 63 |
| NE-10CL NE-10CLT | 20-30 | 6 | 18 | 10 | 45 |
| NE-12CL NE-12CLT | 30-45 | 8 | 27 | 13 | 63 |
| NE-15CL NE-15CLT | 45(60) | 9.5 | 27(31) | 15 | 66 |
| NE-18CL NE-18CLT | 90-120 | 12.5 | 31(41) | 18 | 105 |
| NE-20CL NE-20CLT | 120 | 12.5 | 41 | 20 | 105 |
| NE-13CF NE-13CFT | 30-45 | 8.2 | 27(31) | 13 | 90 |
| NE-15CF NE-15CFT | 30-60 | 9.5 | 27(31) | 15 | 90 |
| NE-18CF NE-18CFT | 60-90 | 12.5 | 31 | 18 | 90 |
| NE-20CF NE-20CFT | 90-120 | 12.5 | 31(41) | 20 | 90 |
