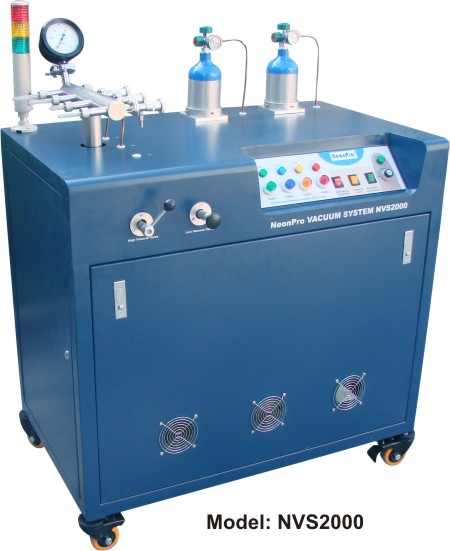

The NeonPro vacuum system is designed for fabrication of high-quality neon tube or cold cathode tube.
Features:
- User friendly control panel.
- Metal body, avoiding damage when shipping.

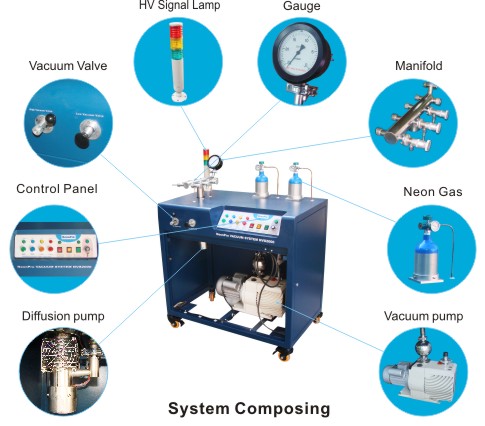

- A full set of machine integrated with degassing system, bombarding system and gas filling system.
- Nonmagnetic stainless steel manifold, free of cracking problem, more durable and longer life.
- Equipped with high purity rare gas in metal bottle.
- High pumping speed and low noise.
- Equipped with air-cooling diffusion pump, high ultimate vacuum rate, clean and no pollution.
Features:
- User friendly control panel.
- Metal body, avoiding damage when shipping.
- A full set of machine integrated with degassing system, bombarding system and gas filling system.
- Nonmagnetic stainless steel manifold, free of cracking problem, more durable and longer life.
- Equipped with high purity rare gas in metal bottle.
- High pumping speed and low noise.
- Equipped with air-cooling diffusion pump, high ultimate vacuum rate, clean and no pollution.
| Specification | |
|---|---|
| Ultimate Vacuum of System | 5×10-5Pa |
| Ultimate Vacuum of Vacuum Pump | 6×10-2Pa, Pumping Speed: 6L/sec, Power: 650W |
| Ultimate Vacuum of Diffusion Pump | 5×10-5Pa, Pumping Speed: 60L/Sec, Power: 200W |
| Gas Gauge Measurement range | 0-25mba |
| Rare Gas Bottle | Capacity: 1.4L, Pressure: 10 MPa, Purity: 99.999% |

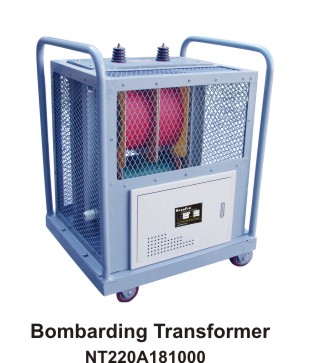

| Bombarding Rating | 9000V, 12000V, 15000V, 18000V |
| Power | 220V, 2000W |
