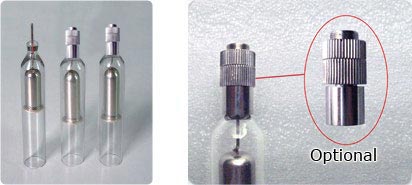

Cold Cathode Tube Electrodes
Cold Cathode Tube Electrode
-------Lead Glass, Lead Free Glass, Pyrex(Borosilicate)
- Hight current output 90-120mA, designated for Cold Cathode Fluorescent Tube use.
- Sophisticated emission coating technology, dispensing with the wasteful heated electrode allows high efficiency to be achieved.
- Fully annealed to relieve stress, prevent cracking.
- Advanced nickel plating shell for lowest sputtering and blackening.
- Sophisticated emission coating technology, dispensing with the wasteful heated electrode allows high efficiency to be achieved.
- Fully annealed to relieve stress, prevent cracking.
- Advanced nickel plating shell for lowest sputtering and blackening.

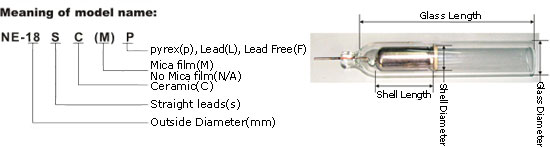

| MODEL | MA.RATING | SHELL | GLASS | GLASS TYPE | ||
|---|---|---|---|---|---|---|
| DIA.(MM) | LENGTH(MM) | DIA.(MM) | LENGTH(MM) | |||
| NE-18SCL | 60-90 | 12.5 | 31(41) | 18 | 143 | Lead Glass |
| NE-20SCL | 90-120 | 12.5 | 41(31) | 20 | 143 | Lead Glass |
| NE-18SCF | 60-90 | 12.5 | 31(41) | 18 | 143 | Lead Free Glass |
| NE-20SCF | 90-120 | 12.5 | 41(31) | 20 | 143 | Lead Free Glass |
