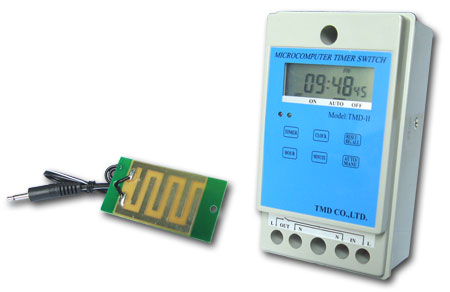

| Microcomputer Timer |
Features:
- Built-in Timer controlled by microcomputer.
- Operation friendly.
- Built-in circuit watchdog.
- Support two types of power supply. No need to change battery.
- Super-current contact switch. Small power load can be controlled directly.
- Rain sensor is a plus. It cuts off the power automatically in raining days.
- Workable in both 220V and 380V power network.
- 6 on-off groups. |
 |
|
|
|

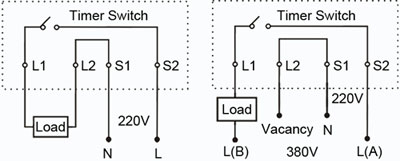

| Re: 1) The load can be small power direct load or coil of AC contactor for indirect control. |
| 2) For small power load, it can be controlled directly. For super power load and 3-phase load, it is controlled indirectly through AC contactor. |
 CAUTION: Avoid short circuit for 380V load. |
| Specification |
| Power |
220VAC |
| Contact Switch Load |
10A(resistive) |
| Timer Accuracy |
0.5 S/Day |
| Standby Batter |
1500 mA/H |
| Size |
123x73x48mm |
| Weight |
0.35kg |
|
| Note: The load of contact switch is resistive load. For condenser load and inductive load, the load should be lowered accordingly. |
| |
